Hansen Résistance au feu
HansenMillennium® propose des solutions uniques avec les profils en aluminium les plus fins au monde pour tous les types de bâtiments.
Notre gamme de produits de Résistance au feu comprend:
- Fenêtres et murs coupe-feu
- Portes coupe-feu
- Systèmes de ventilation anti-incendie
Découvrez notre système unique de fenêtres EI60 avec des profilés extrêmement fins.
HansenMillennium® EI60 a été testé au feu, tant du côté externe que du côté interne, conformément à la norme EN 1364-1:2015. Le test au feu du Hansen Millennium® EI60 comprend des éléments de fenêtre avec différentes tailles de verre clair ainsi que des assemblages de montants et de traverses.
La construction n'est approuvée que pour le verre fixe. Hansen Millennium® EI60 est basé sur le système Hansen Millennium® et peut donc être combiné avec des fenêtres standard sans différence visuelle. Cela offre une grande liberté de conception dans la construction de la façade.

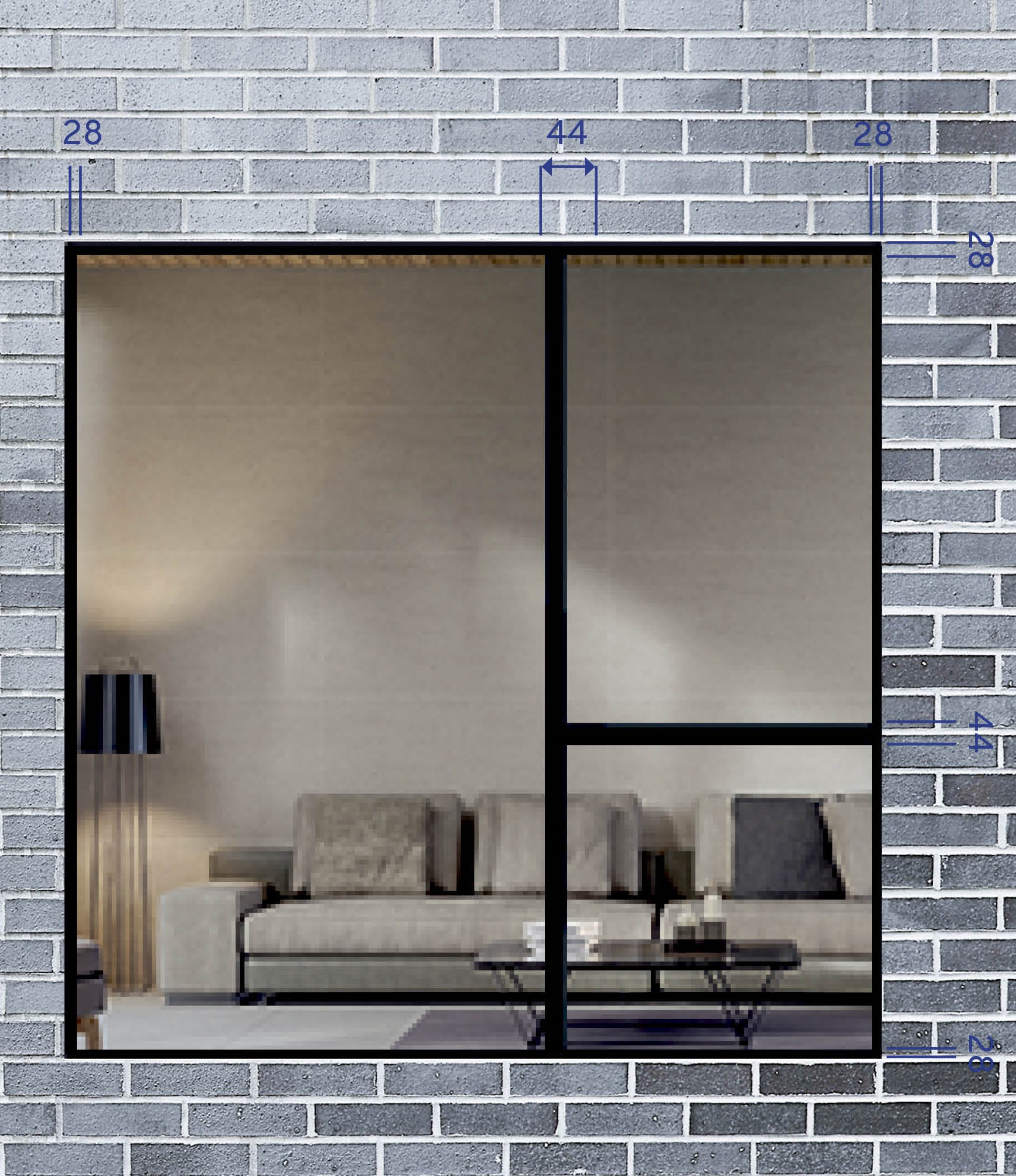

Le profilé de la fenêtre Hansen Millennium® EI60 ne mesure que 28,5 mm d'épaisseur.
- Extremely slim profiles
- Can be constructed inshapes, such as. right-angled, or arcs
- Possibility of two-coloring with difference between interior and exterior color
- Maximized daylight and g-value
- System with hidden drawbars allows larger spans in facades
- Integrated thermal brake
- Hidden drains
The system can be used for 55mm (2 ⅙") - fix partitions
When low environmental impacts are required Hansen will be able to supply the aluminium profiles in special aluminium produced with renewable energy. This reduces the impact from the profiles with more than 75% compared to standard aluminium (HYDRO REDUXA®)
Construction
The static properties of the profiles are optimized, as the construction of the aluminium profiles and the thermal break contributes to the strength.
Design
Max Height: 3600mm (141')
Max Width of horizontal transom 1752mm (5' 8")
Max Glass area 5,24m2 (56ft²)
Profiles
The system supplier HansenConcepts is ISO 9001 certified.
The system includes many profile variations for different visdual expressions. Can be surface treated as desired in different colours outside and inside.
Insulating zone
The profiles are energy optimized with a specially designes thermal break between the aluminium profiles. This breaks the cold bridge throughout the entire length of the profiles.
Variants
E 60
EI 60
EW 60
Air permeability: Class 4
Water tightness: E 1200
Resistance to wind load: C3
Here you can download a selection of standard drawings of fire proof windows made with the HansenMillennium® system.
HansenMillennium - Fire Proof - PDF DWG
It is recommended to save ZIP files to local disk before unpacking.
We specialize in project customization and continuously develop new profiles in all systems.
Contact our sales department so we can help targeted profile sections for your project.
